The Jayne Redman® Rotational WorkRing Set with Swanstrom Circle Clamp Adaptor and Jayne’s Large Slider Clamps

The Jayne Redman® Rotational WorkRing System by Swanstrom was designed by Tim Sheriff of Swanstrom Tools USA in collaboration with Jeweler - Educator Jayne Redman.

This Set includes the WorkRing Base with a 4.5” WorkRing, a 4.5" Acrylic Disc, the Swanstrom Circle Clamp Adaptor, and Jayne's Large Slider Clamps. Hardware includes a screwdriver; two dovetail cleats with two 1/4” socket head screws for attachment; 8 - 1/4” Phillips head screws with washers; a Small and large Hex Wrench; a 3/8”socket head screw with Spacer; and a Locking Tab with screw.

The Swanstrom Circle Clamp Adaptor holds any Circle Clamp that works with the Swanstrom SawPlate System. Hardware includes 3/32” Hex wrench, 1/8” flat head hex Locking Screw, and two 1/4” Phillips head screws.

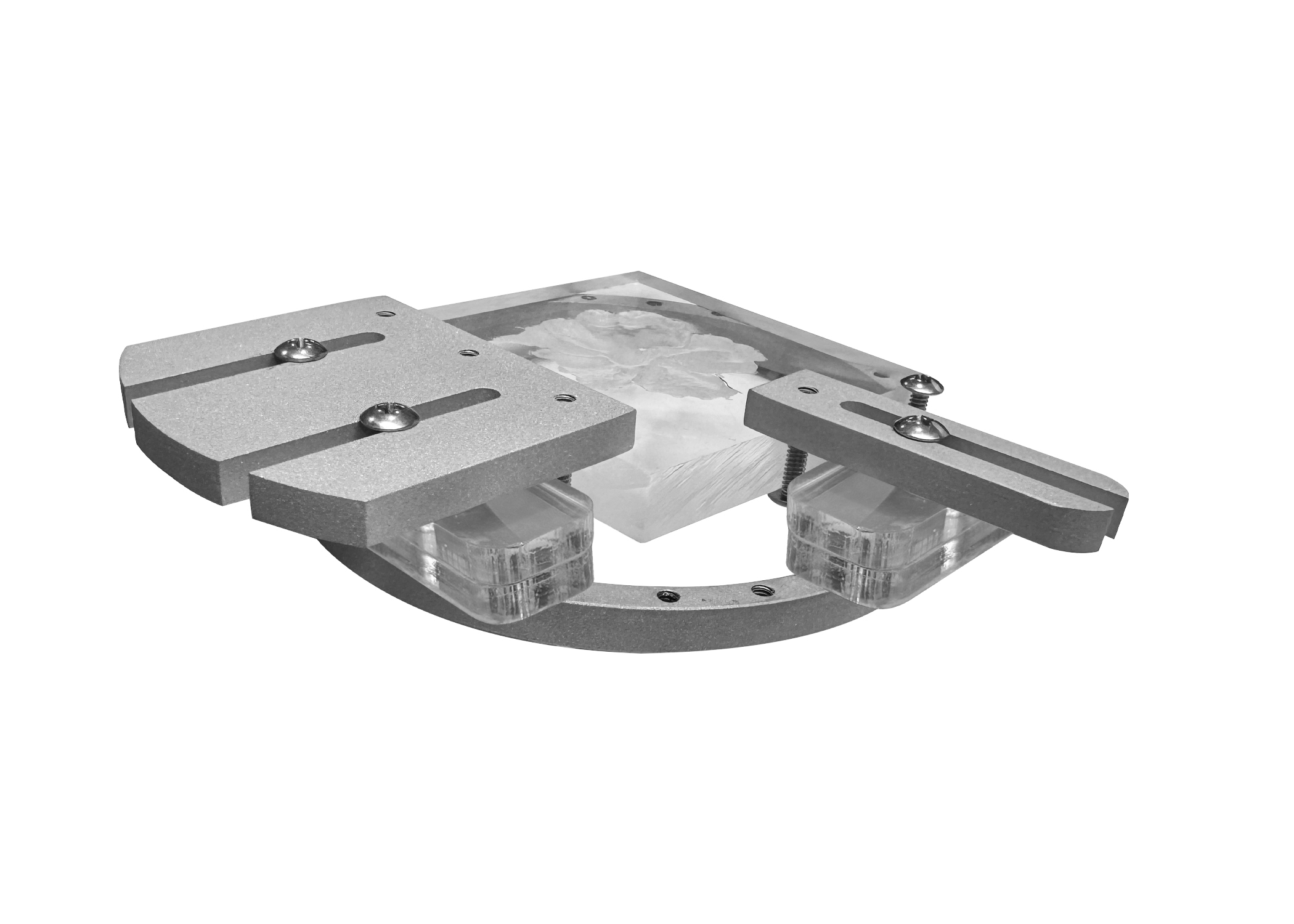

The addition of Jayne's Slider Clamps will allow you to hold material of any size, shape or thickness within the WorkRing. Included are two Aluminum Small Slider Clamps and one Large Aluminum Slider Clamp. Screws provided are 14 -1/4”, 14 - 1/2”, 7 - 5/8” and 7 - 7/8”. Cast acrylic Slider Supports provided: 2 pieces - 1/4” x 9/16” x 3”, 4 pieces - 3/16” x 9/16” x 1-3/16”

To use the WorkRing, slide material under the Phillips head screws, then tighten with the Phillips head screwdriver provided. Muscle fatigue and soreness are eliminated as the WorkRing securely holds metal or other materials, such as wood or plastic, while you saw, carve, texture, engrave, set stones, or utilize other metalsmithing techniques. The acrylic disc replaces the WorkRing with a solid surface to set objects on.

The WorkRing rotates in a silicone lined depression allowing for smooth and accurate movement, or can be held stationary by either turning the Locking Tab on the side and tightening the screw, or screwing up into the Ring from the underside of the base with two 1/4” Phillips head screws.  Easily attach or remove the WorkRing Base from a dovetail mounting plate on your bench. The WorkRing System requires a dovetail method of attachment. It is compatible with any dovetail mounting plate such as GRS®.

The ability to rotate your sawing surface is essential for making blanking (pancake) dies. The Jayne Redman® Rotational WorkRing System is the perfect tool for that task. Use the included spacer and socket head screw to add a Jayne Redman® Dovetail Adaptor for rotation (not included), or remove the dovetail cleats and screw directly into the Dovetail Adaptor. Attach the new Jayne Redman® Dovetail Mounting Plate to your bench and screw the WorkRing Base directly into it, eliminating the need of a Dovetail Adaptor for rotation.

Download the Jayne Redman® Rotational WorkRing User Guide and WorkRing Tips User Guide.
